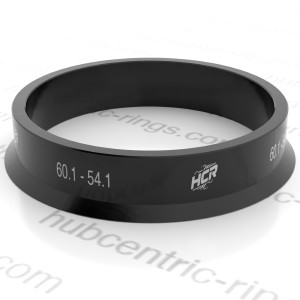

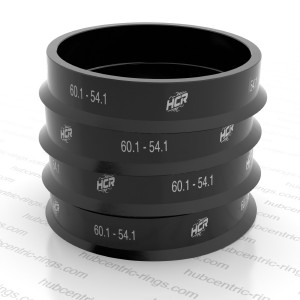

Hub centric rings 60.1 → 54.1 mm
🚗 Compatible cars (hub size 54.1 mm)
The following cars have a hub size of 54.1 mm. This hub centric ring fits when the wheel center bore is 60.1 mm.
Hyundai
- Bayon Bayon (2021–)
- i20 GB (2014–2020), BC3 (2020–)
Kia
- Picanto TA (2011–2017), JA (2017–)
- Stonic YB (2017–)
Mazda
- 2 DJ (2014–)
- MX-5 ND (2015–)
Suzuki
- Swift ZC/ZD (2004–2010), FZ/NZ (2010–2017), AZ (2017–)
Toyota
- Carina Carina II T170 (1987–1992)
- Celica RA/TA (1970–1977), RA/MA (1977–1981), RA/MA/SA (1981–1985), ST160 (1985–1989), ST180 (1989–1993), ST200 (1993–1999), ZZT230 (1999–2006)
- Corolla E70 (1979–1983), E80 (1983–1987), E90 (1987–1992), E100 (1991–1997), E110 (1997–2001), E120 (2001–2006), E150 (2006–2013)
- MR2 AW11 (1984–1989), SW20 (1989–1999), ZZW30 (1999–2007)
- Starlet KP60 (1978–1984), EP70 (1984–1989), EP80 (1989–1996), EP90 (1996–1999)
- Yaris XP10 (1999–2005), XP90 (2005–2011), XP130 (2011–2020), XP210 (2020–)
- Yaris Cross Yaris Cross (2021–)
🔧 Installation guide
Clean the car hub and wheel center bore from dirt and rust. A dry, clean surface ensures a tight fit.
Press the hub centric ring onto the car hub. It should fit snugly — not too loose and not forced.
Lift the wheel into place. The wheel center bore sits on top of the hub centric ring, centering the wheel precisely on the hub.
Tighten the wheel bolts/nuts in a cross pattern to the correct torque. The hub centric ring stays between the wheel and hub.
Measure your wheel center bore diameter (60.1 mm) and your car hub diameter (54.1 mm). See measuring guide →
